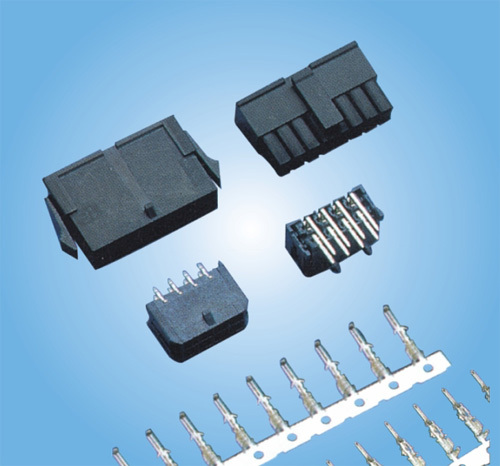

43645 3.0 spacing strip connector plug Technical data:
Spacing: 3.0
Applicable wire: AWG # 30 ~ # 20
Rated voltage: 250V
DC / AC (RMS)
43645 3.0 spacing strip connector plug Rated current: 3.0A
43645 3.0 spacing strip connector plug withstand voltage: 1000V AC
(RMS)
43645 3.0 pitch connector strip connector Operating temperature: -25 鈩 ~ + 85 鈩
Insulation resistance: 鈮1000M惟
Contact resistance: 鈮0.02惟
Applicable PC board thickness: 1.6mm
43645 3.0 spacing strip connector plug material:
Plug: Nylon 66 UL94V-0
Terminals: Phosphor bronze
