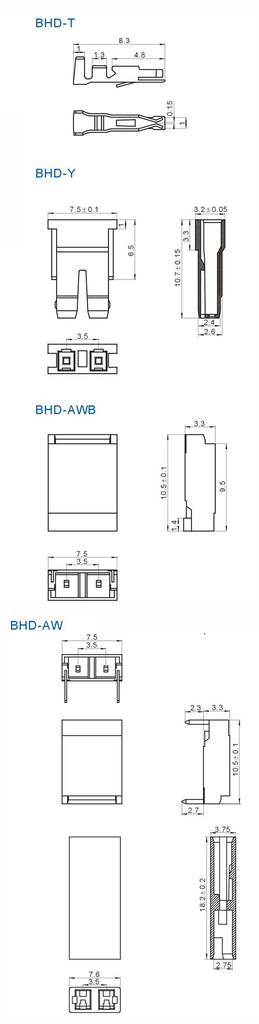

BH 4.0 pitch 3p2 socket pcb connector

Material PA6T core number 3P2 pin number 3P2
Product Pitch 4.0

Technical Parameters:
Spacing: 3.5
Line: 4
Applicable wire: AWG # 22 ~ # 28
Rated voltage: 1400V
DC / AC (RMS)
Current Rating: 1.0A
Withstand voltage: 3800V AC
(RMS)
Operating temperature: -25 ℃ ~ + 85 ℃
Insulation resistance: ≥1000MΩ
Contact resistance: ≤0.02Ω
Applicable PC board thickness: 0.8mm

material:
Housing: Nylon 66 UL94V-0
Needle seat: PBT
1. Housing: Nylon 66
UL94V-0
2. Pin: Brass
Terminals: Phosphor bronze
