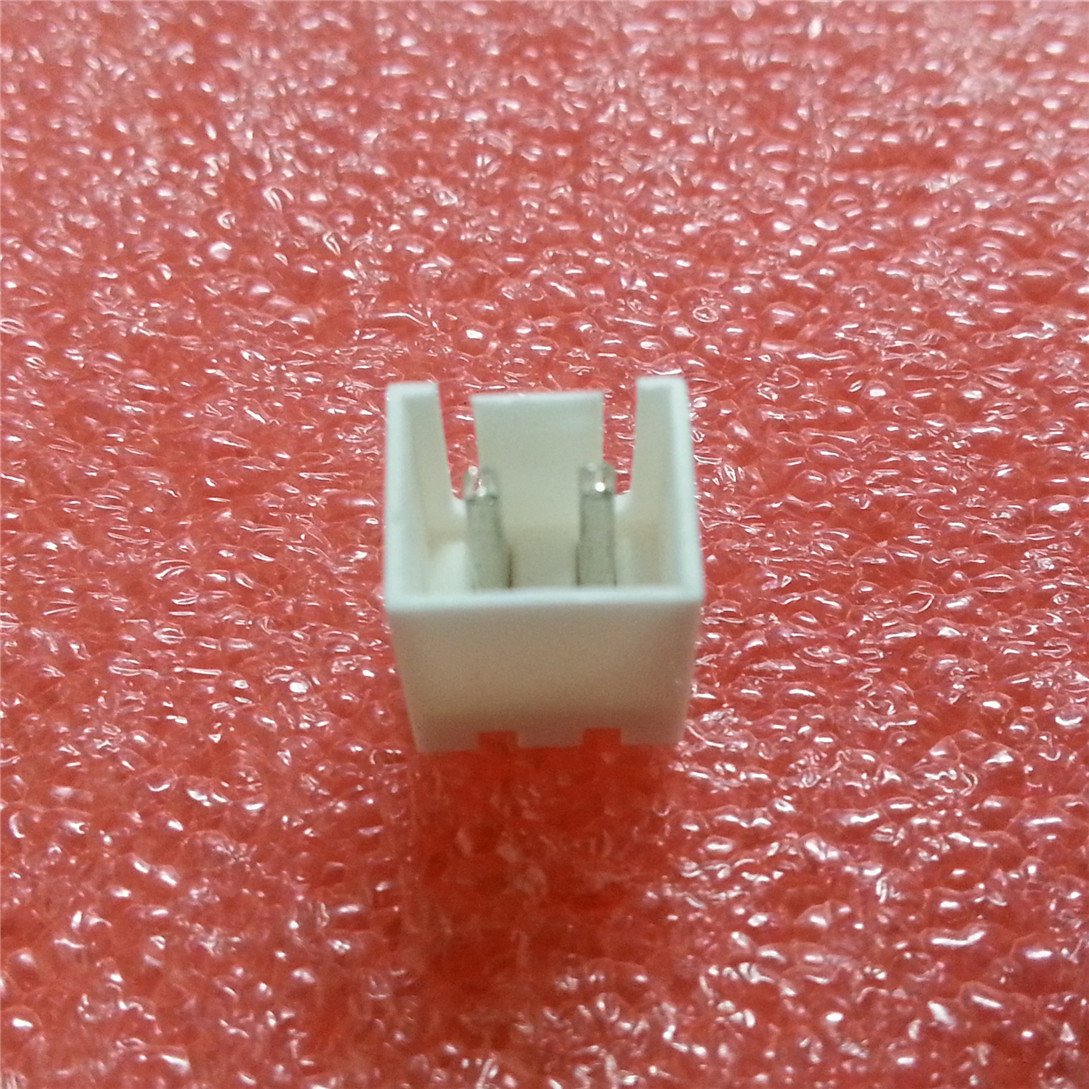

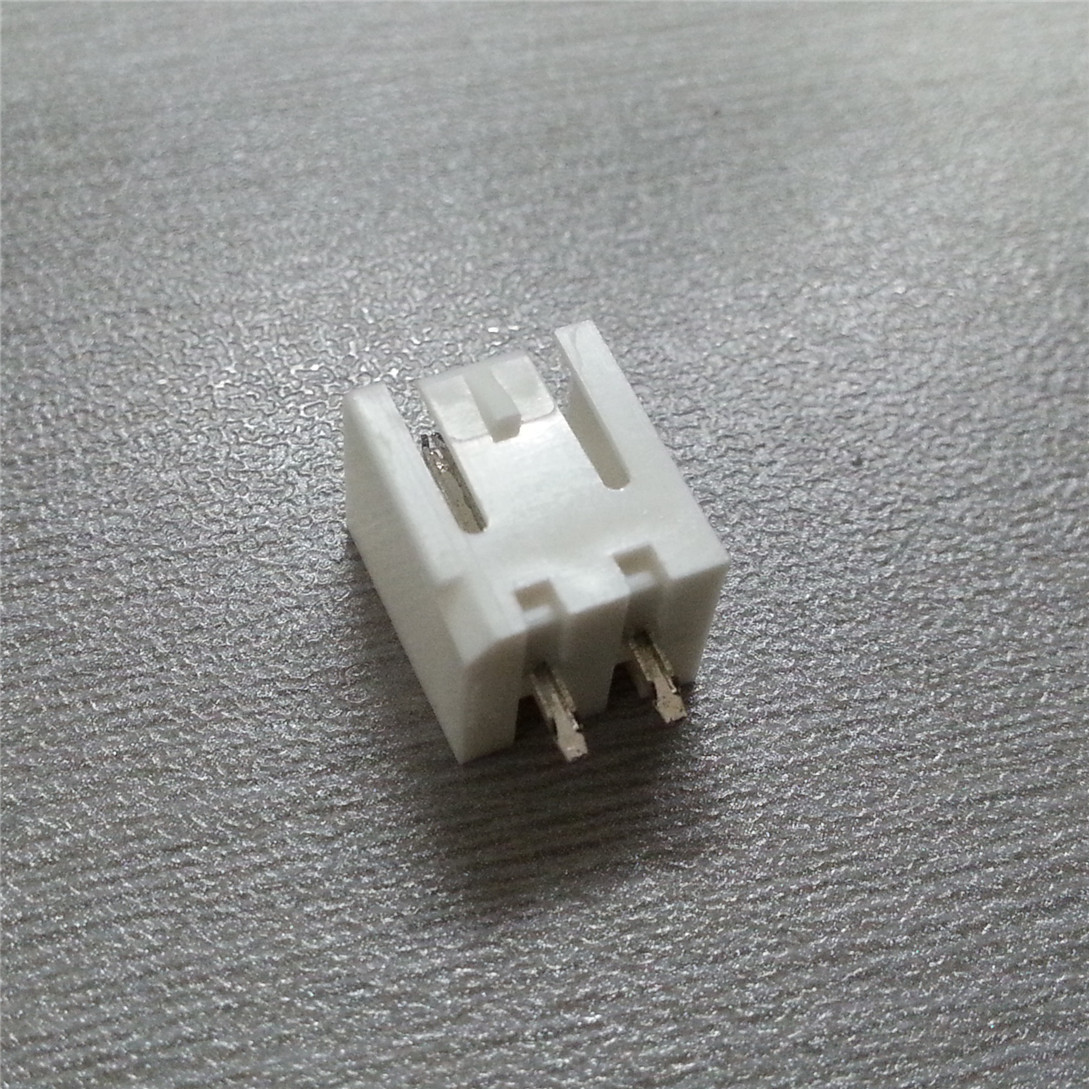

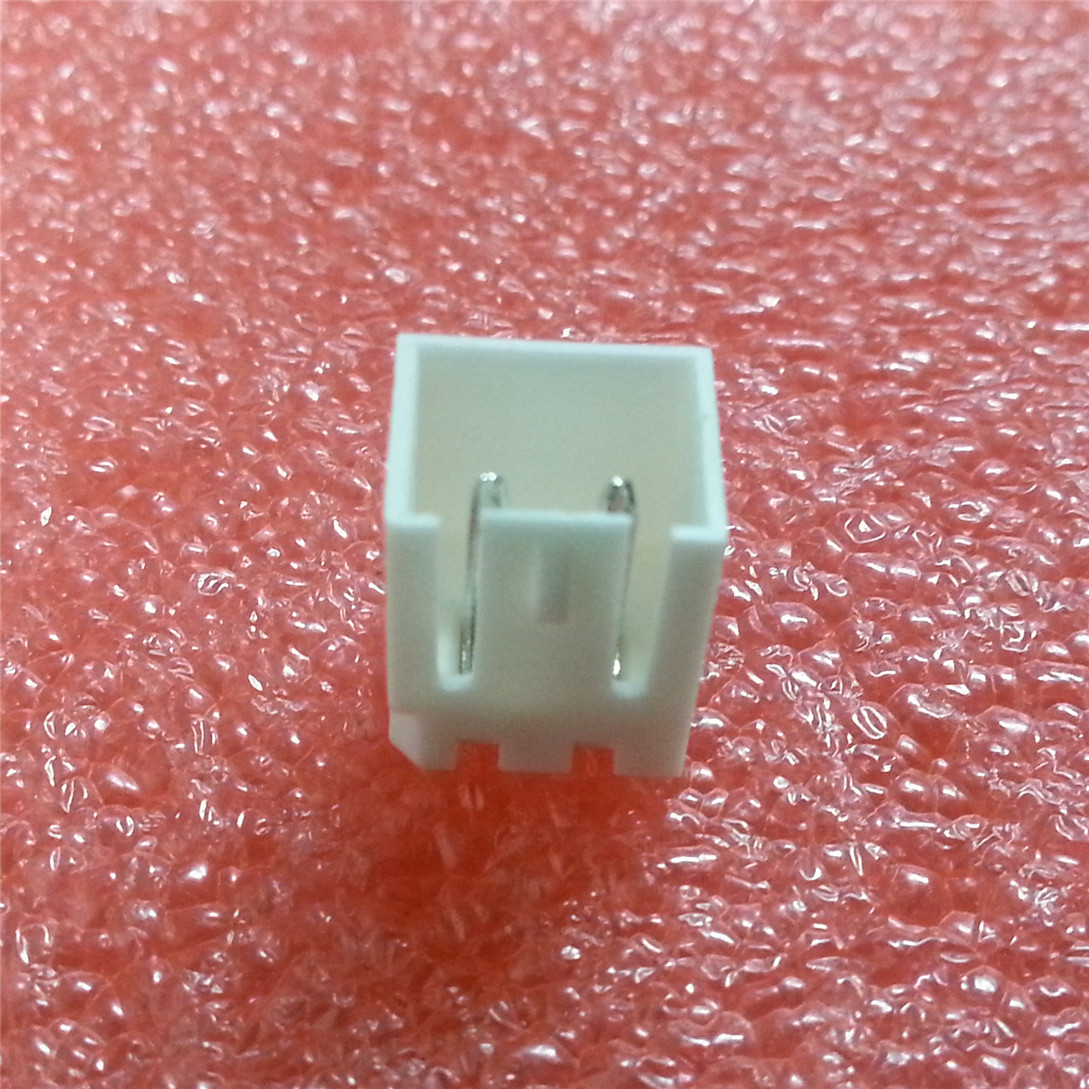

VH 3.96mm pitch connector strip connector
Technical Parameters:
Pitch: 3.96
Line: 2 to 15
Applicable wire: AWG # 22 ~ # 18
Rated voltage: 250V
DC / AC (RMS)
Current Rating: 7.0A
Withstand voltage: 1000V AC
(RMS)
Operating temperature: -25 鈩 ~ + 85 鈩
Insulation resistance: 鈮1000M惟
Contact resistance: 鈮0.02惟
Applicable PC board thickness: 1.6mm
material:
Housing: Nylon 66 UL94V-0
Needle seat:
1. Housing: Nylon 66 UL94V-0
2. Pin: Brass
Terminals: Phosphor bronze
