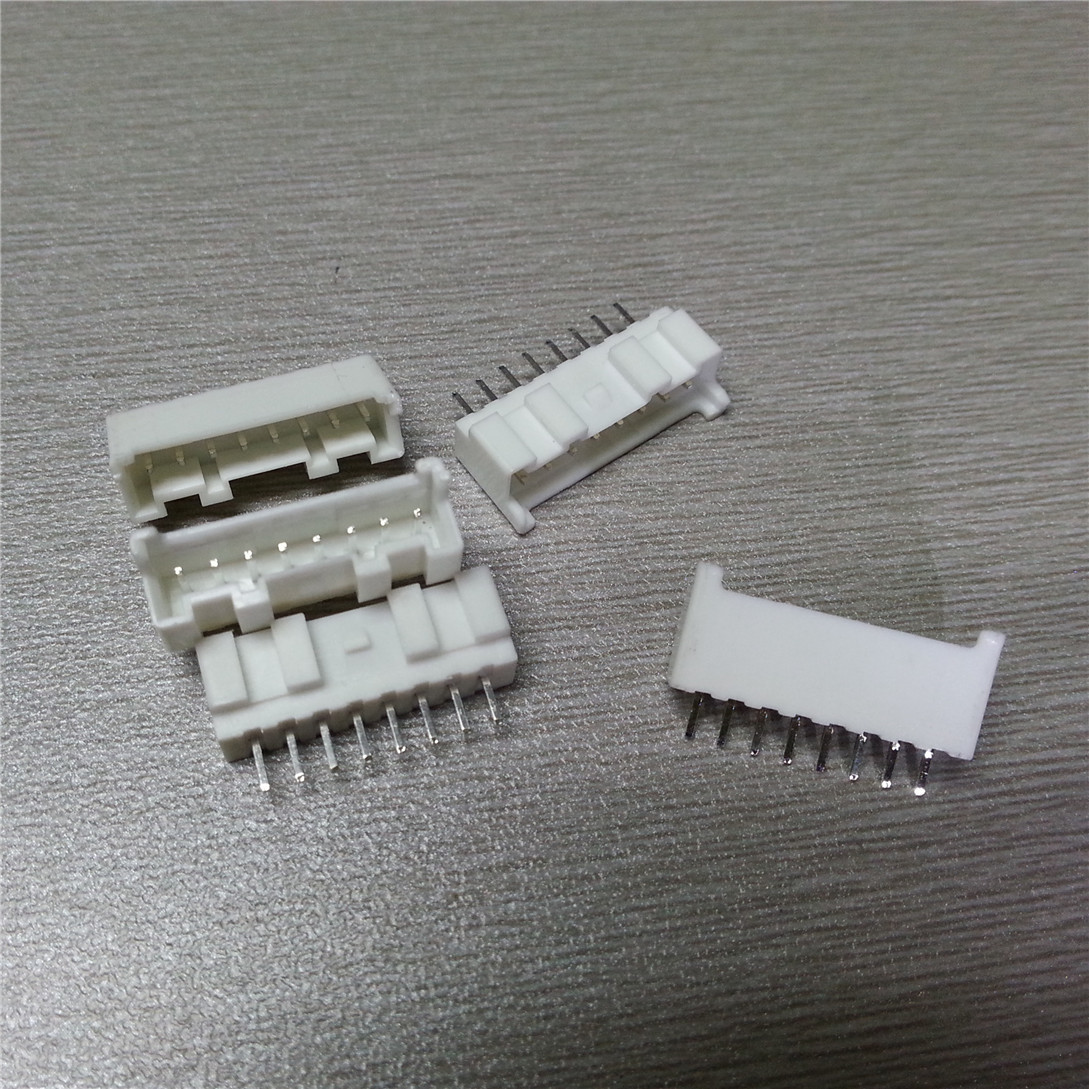

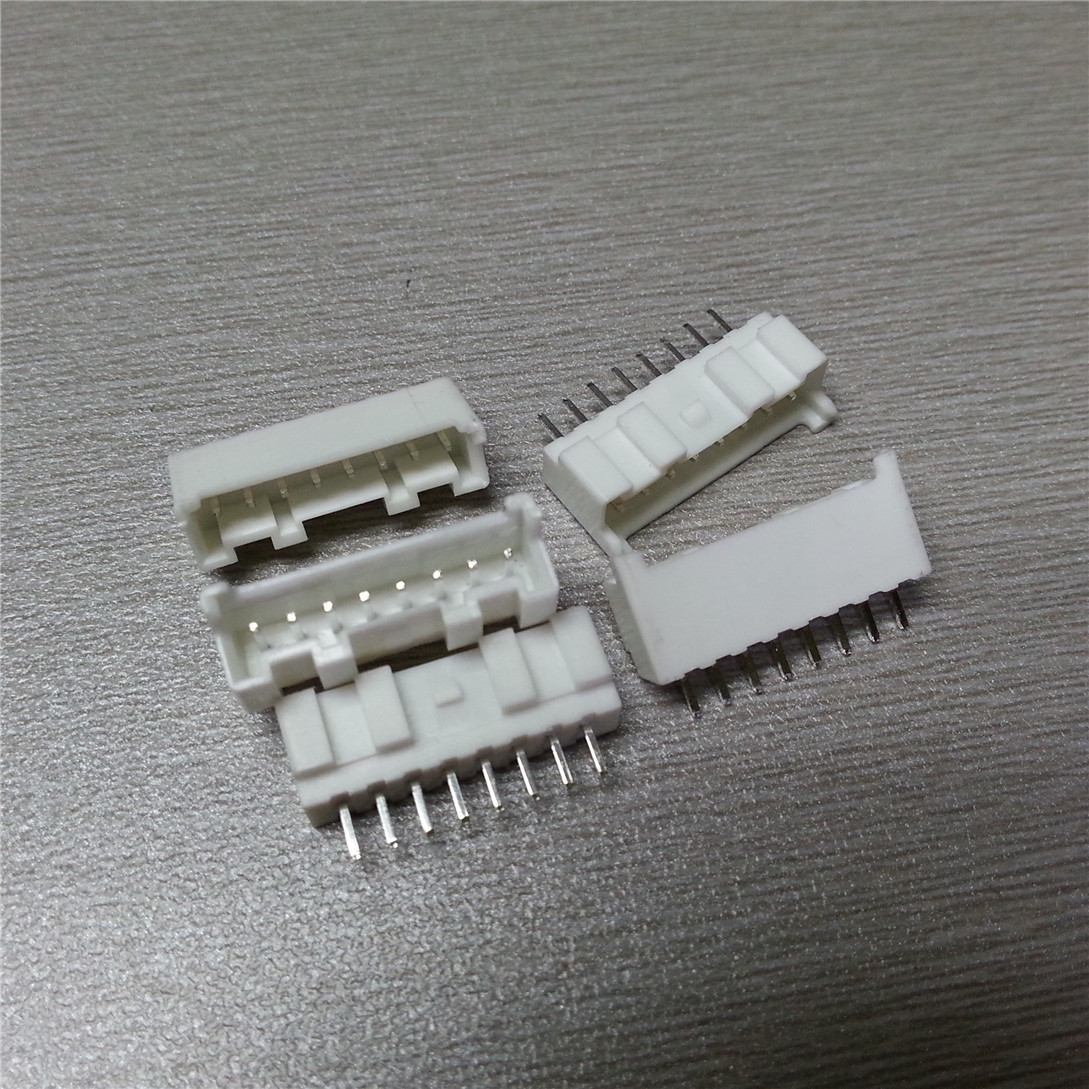

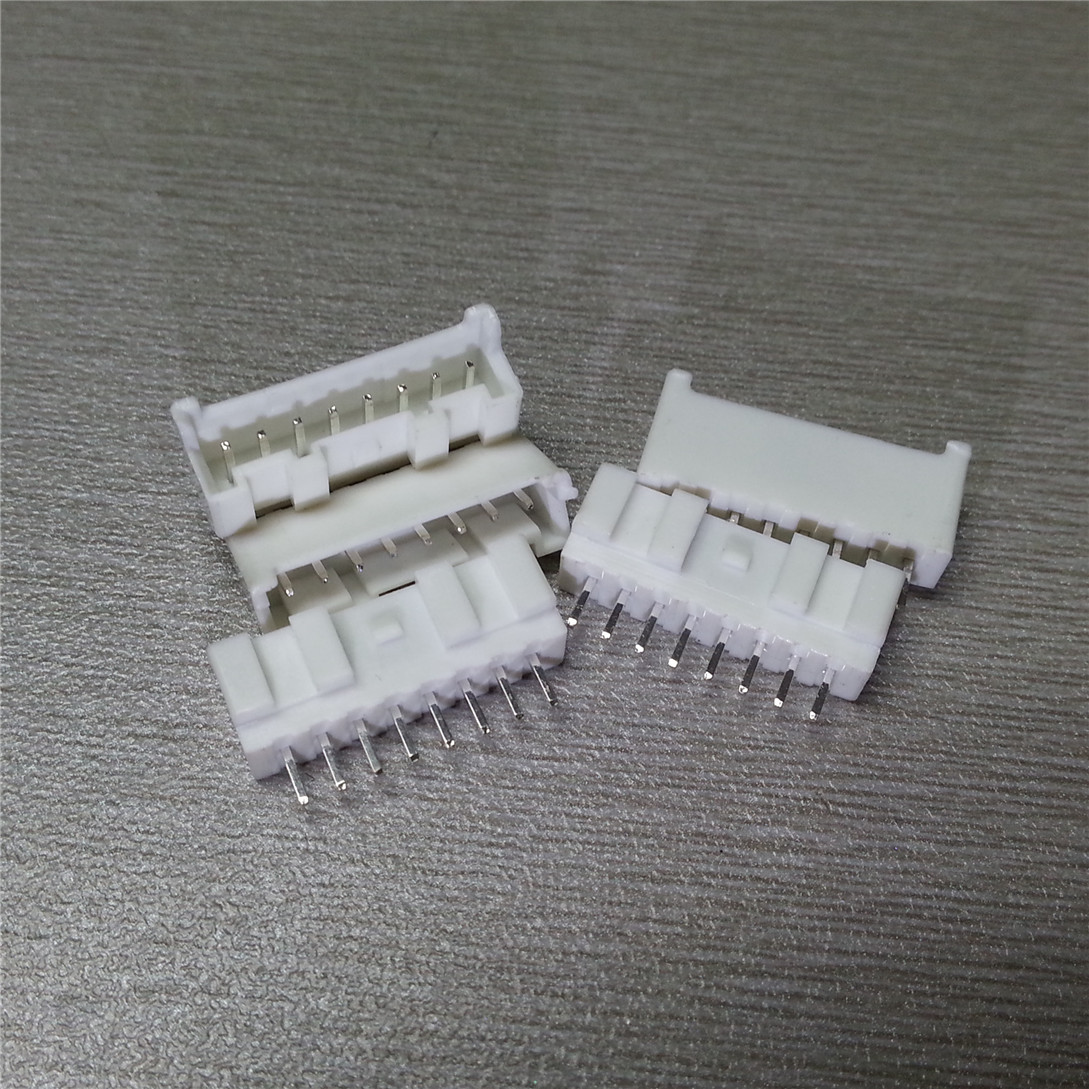

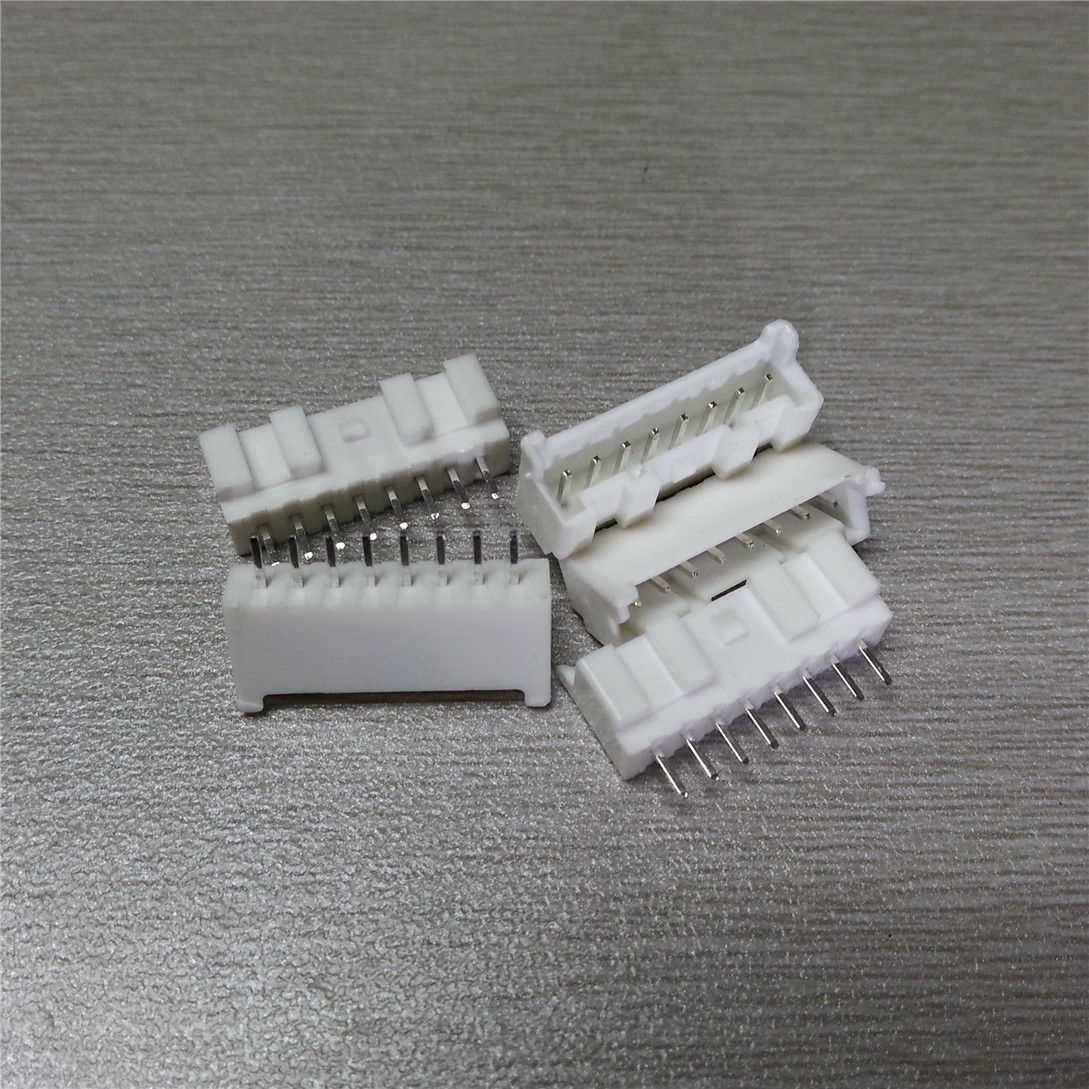

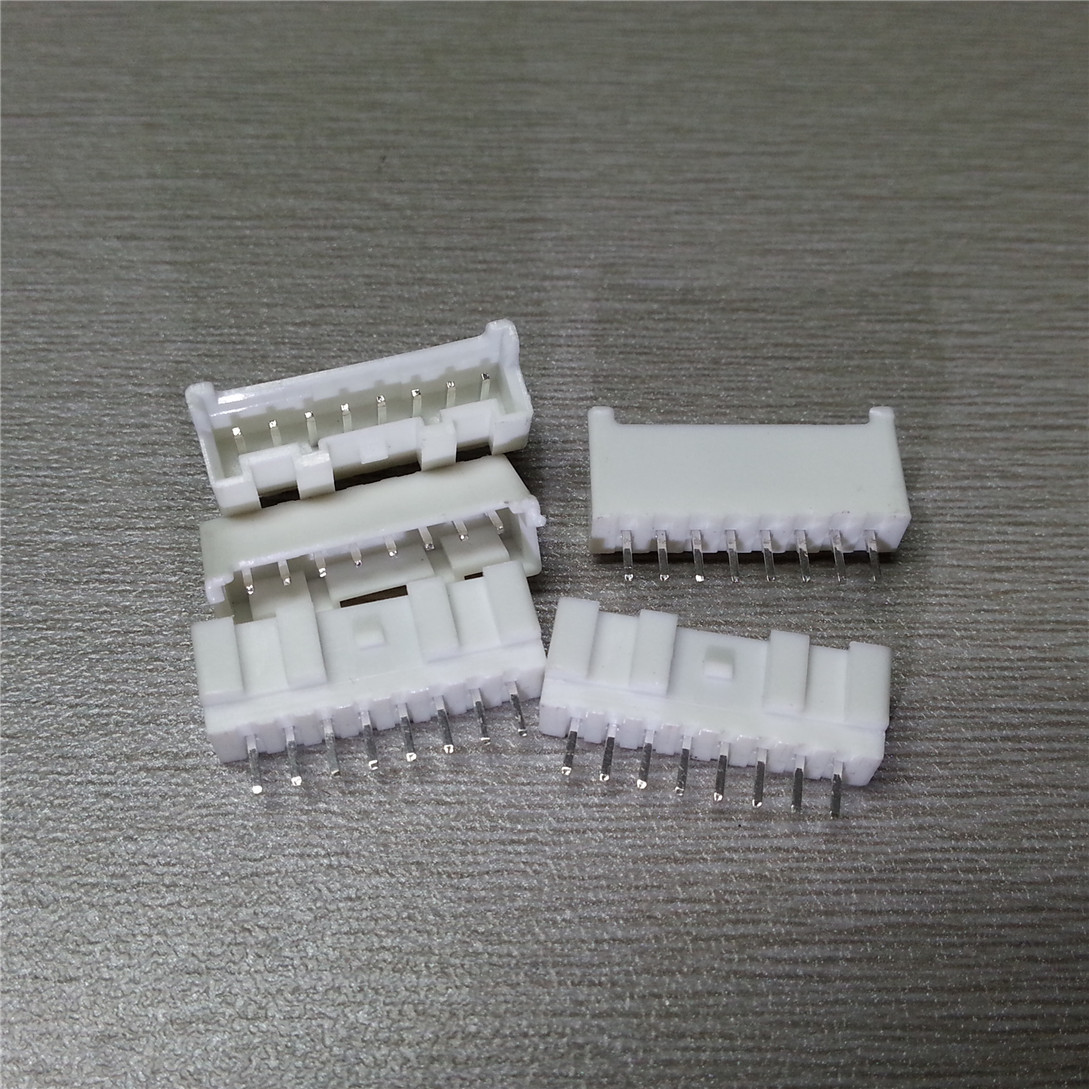

2.0 PHD double spacing strip socket connector
Technical Parameters:
Spacing: 2.0
Lines: 6-40
Applicable wire: AWG # 24 ~ # 28
Rated voltage: 250V
DC / AC (RMS)
Current Rating: 2.0A
Withstand voltage: 800V AC
(RMS)
Operating temperature: -25 鈩 ~ + 85 鈩
Insulation resistance: 鈮1000M惟
Contact resistance: 鈮0.02惟
Applicable PC board thickness: 0.8mm ~ 1.6mm
material
Housing: Nylon 66 UL94V-0
Needle holder: nylon 66
UL94V-0
Pin: Brass
Terminals: Phosphor bronze
